Denotes that the product is Kitemarked

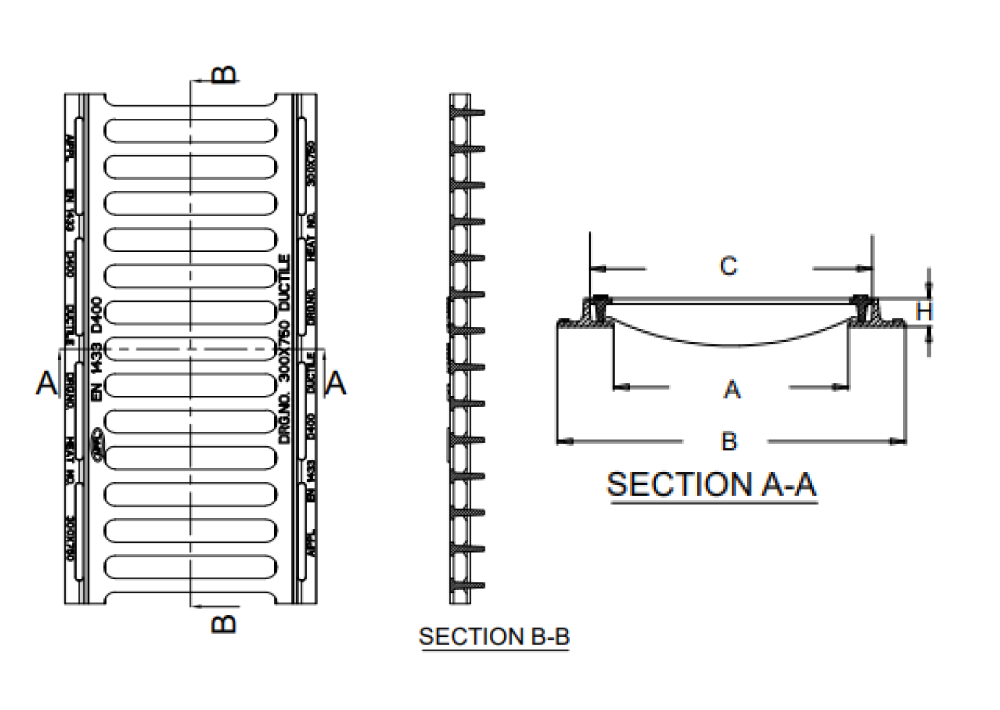

| SL NO. | DRAWING NO. | SIZE CLEAR OPENING A(in mm) | SIZE OVERBASE B(in mm) | SIZE GRATE OVERBASE C(in mm) | GRADE | POCKET/SLOT | HEIGHT |
|---|---|---|---|---|---|---|---|
| 1 | AIPPL-034 | 100×750 | 195×750 | 15×75 | D-400 | S.S | 50 |
| 2 | AIPPL-044P | 200×750 | 330×750 | 25×75 | D-400 | S.S | 50 |
| 3 | AIPPL-045B | 250×750 | 370×750 | 30×75 | C-250 | S.S | 50 |
| 4 | AIPPL-044 | 250X750 | 370×750 | 30X75 | D-400 | S.S | 30 |
